Mini Pleat Type HEPA / ULPA Filters

Material Overview

  • Gasket Seal design
  • Lowest possible Pressure drop from micro glass media
  • Individually tested for certified performance

Application

  • HEPA/ULPA filter for clean rooms and LAF benches

Standard

  • EN1822:2009 : H13 – U16
  • Filter Depth (Inches) : 3″
  • Media Type : Glass Fibre, PTFE
  • Frame Material : Aluminum
  • Separator Style : Hot Melt
  • Gasket Material : PU, Neoprene, EPDM, RB
  • Gasket Position : Downstream
  • Faceguard Position : Both sides
  • Rec. Final Resistance : 2x Initial pressure drop
  • Max Operating Temperature : 70°C

Introduction

Model Nominal Size
Inches
(H x W x D)
Actual Size
mm
(H x W x D)
Rated Airflow
(CMM)
Rated Initial
Resistance
(Pa)
H13 Classfication
AA 12 x 24 x 3 305 x 610   x 70 5 120
24 x 24 x 3 570 x 570   x 70 9.5
24 x 24 x 3 610 x 610   x 70 10
24 x 30 x 3 610 x 760   x 70 12.5
24 x 36 x 3 610 x 915   x 70 13.9
24 x 48 x 3 570 x 1170 x 70 17.2
24 x 48 x 3 610 x 1220 x 70 20
U16 Classfication
AA 12 x 24 x 3 305 x 610   x 70 5 135
24 x 24 x 3 570 x 570   x 70 9.5
24 x 24 x 3 610 x 610   x 70 10
24 x 30 x 3 610 x 760   x 70 12.5
24 x 36 x 3 610 x 915   x 70 13.9
24 x 48 x 3 570 x 1170 x 70 17.2
24 x 48 x 3 610 x 1220 x 70 20

* Other dimensions are available on request *

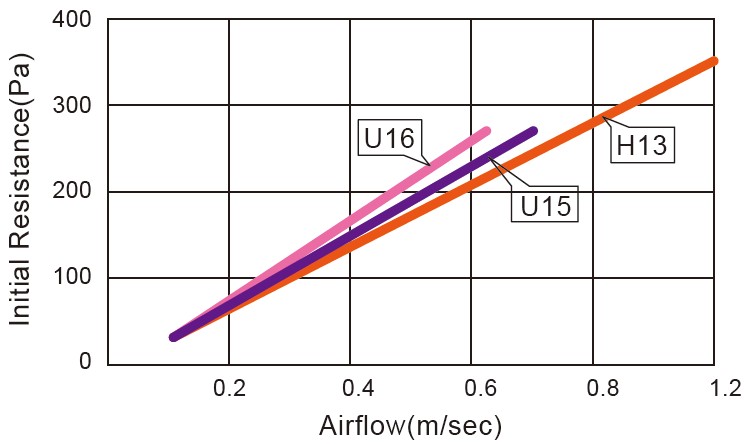

Initial Resistance vs. Airflow
